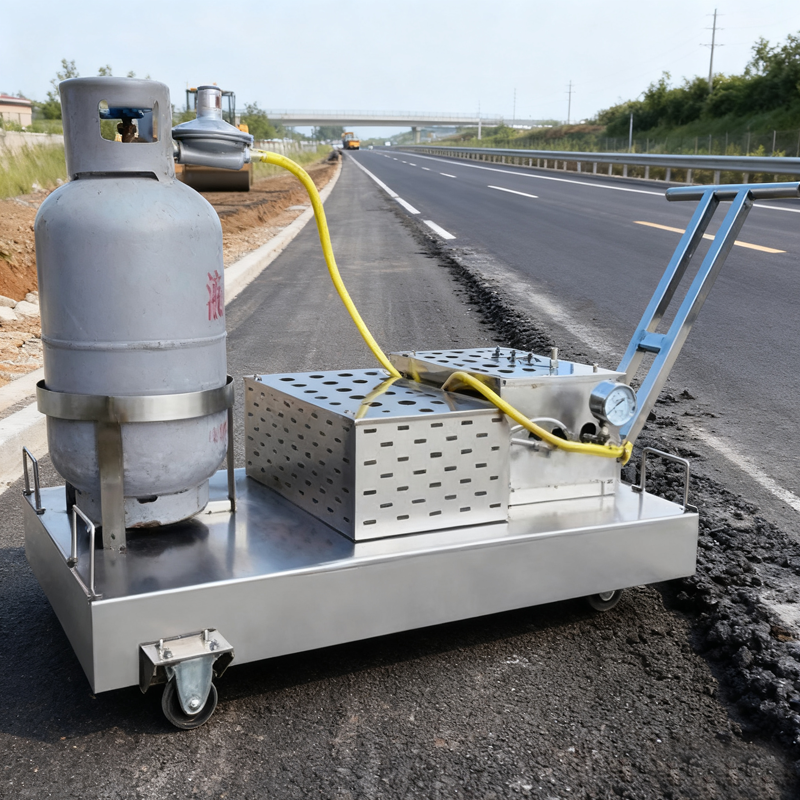

Asphalt pavement infrared heating plate CY-09R

Asphalt pavement infrared heating plate CY-09R


applied range

The infrared heating plate for asphalt pavement is an innovative new generation of on-site thermal regeneration equipment for pavement.

 It can be widely used to treat various road surface diseases, such as repairing asphalt pavement potholes, mesh cracks, sanding and pockmarks, cracking and blockage, rutting and shoulder damage, municipal manhole covers, cold joints of newly paved road surfaces, and printing and engraving of asphalt pavement.

Main performance advantages

1、 Good repair effect

2、 Low repair cost

3、 Fast repair speed

4、 Wide repair scope

5、 Safe and reliable

6、 Intelligent control

7、 Environmental protection and energy conservation

8、 Convenient and agile

9、 Maintenance free

typeZYHP-09R
Heating size (length * width)1250mm*720mm
heating area0.9m²
heating time   8-10min
work pressure8-10PSI
Operating Temperature  140-170℃
maximum temperature170℃
Heating principleinfrared thermal radiation
Dimensions (length * width * height)1460*720*120mm
Total weight105kg
