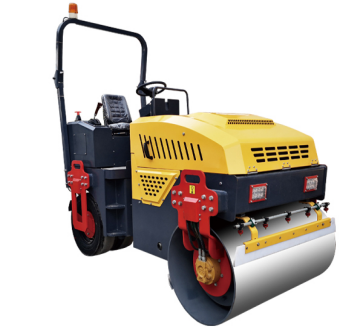

Asphalt roller 4 tons
PRODUCT FEATURES
WIDELY USED IN DIFFERENT OPERATING ENVIRONMENTS AND SITES, EXCELLENT PERFORMANCE, COST-EFFECTIVE, EASY TO SHORT-DISTANCE TRANSFER.
1.Selection of high quality brand Poclain hydraulic system, hydraulic vibration, Poclain hydraulic system, the domestic well- known brand electronic vibration valve, hydraulic vibration system with low failure rate, more stable and reliable.
2. Equipped with famous brand CF4846G national three diesel engine assembly, high efficiency.economic and fuel saving, power up to 36KW.
3.The rear axle can be assembled with tires or optional steel wheels to form three steel wheels,one machine for two purposes.
4.Mechanical walking, using drive shaft power output, rear ax le assembly with high strength,large bear ing capacity, strong climbing performance.
5.The model design is beautiful and generous, the structure is reasonable, the configuration becomes hot, the surface is sprayed with hope, rust- resistant and corrosion resistant.
6.Choose the international Poclain mature hydraulic brake system,comparable to imported rollers.
| MODEL NUMBER | CY-4T-L |
| Wheel width | 1300MM |
| Excitation force | 75KN |
| Vibration frequency | 70HZ |
| Overall dimensions | 2800*1350*2700mm |
| Hydraulic oil tank | 100L |
| Activation method | Electric start |
| Vibration mode | Hydraulic vibration |
| Working weight | 4000KG |
| Wheel Diameter | 630MM |
| Climbing ability | 35% |
| Travel speed | 1-8KM\H |
| Engine model | Changchai490 Euro4 |
| Engine power | 38KW |
| Fuel tank | 62L |
| Water tank | 0L |
