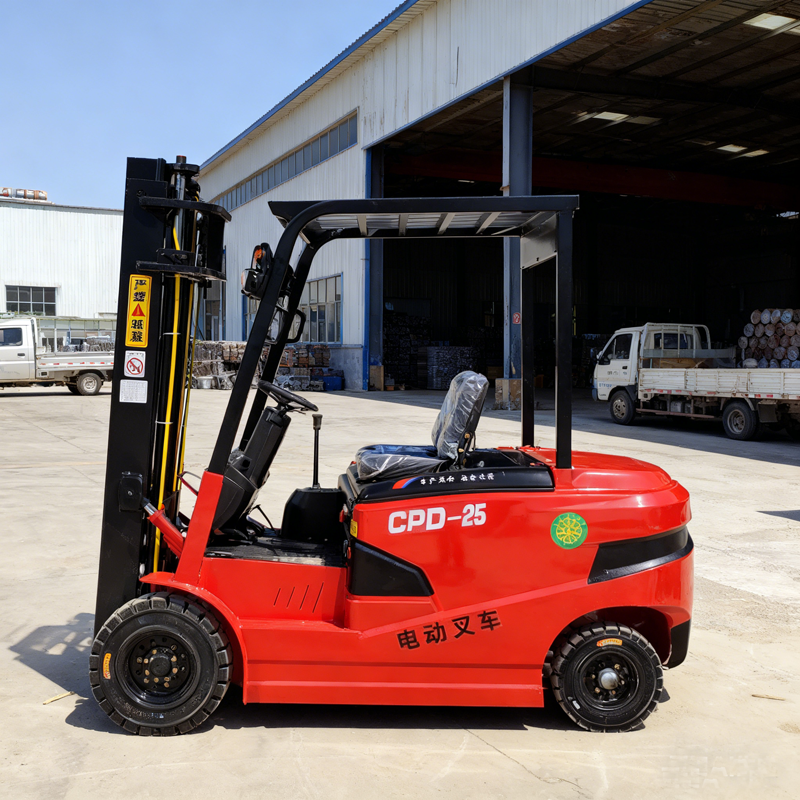

CPD-25 Electric forklift
features
Used in the fields of construction sites, warehousing, and logistics; Ports and docks, handling small containers, groceries, etc.
1. The operation is relatively simple, usually using an electronic control system, which can achieve forward, backward, lifting and other actions through a handle or button.
2. Small size, small turning radius, capable of flexible driving and operation in narrow spaces.
3. The motor has reliable performance and can operate stably for a long time, reducing equipment failures and maintenance frequency.
4. The motor runs smoothly with minimal vibration. The operator will not feel tired when operating the forklift for a long time, which improves work efficiency and safety.
5. The operating noise is very low, usually below 60 decibels.
6. Equipped with an intelligent maintenance system that can monitor the operation status of equipment in real time, warn of faults in advance, and reduce maintenance costs.
| Maximum lifting weight | 2500kg |
| long | 2400mm without fork |
| long | 3620mm with fork |
| wide | 1200mm |
| tall | 2150mm |
| Operating weight | 3600kg |
| Lift Height | 3 meters (customizable) |
| Body material | Extended wheelbase body |
| Walking motor | 5000W Hart synchronous motor |
| voltage | 72V |
| controller | Anti slip slope safety controller |
| battery | 12 ultra micro maintenance free batteries |
| Lighting and Signal | Lighting fixtures, left and right turn signals, brake lights, driving lights, instruments, electric horns, etc |
| Drive axle | Full floating integrated heavy-duty low-speed drive axle |
| tire | Front wheel 650-10 (high wear-resistant solid tire) Rear wheel 500-8 (high wear-resistant solid tire) |
| steering axle | Special rear axle for heavy-duty forklifts |
| Braking method | Hand brake, oil brake |
| Lifting cylinder | Strengthen the sealing of dual oil cylinders |
| FORK LENGTH | 1220mm ultra thick forged fork |
| Hydraulic lifting motor | 5000W high-power brushless external pump |
| Longmen frame material | Special thickened 148mm steel door frame for forklifts |
| Steering method | Hydraulic Power Steering |
| Turning radius | 90 ° can turn in place |
| charging time | 6 hours |
| Working Time | 3-4 hours |
| Climbing angle | 15° |
