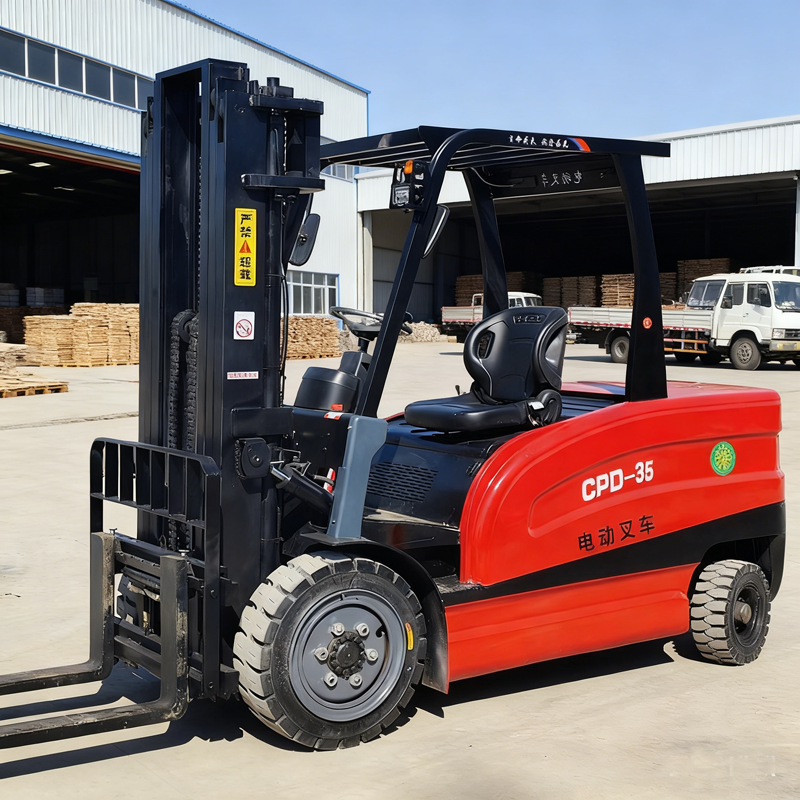

CPD-35 Electric forklift

CPD-35 Electric forklift


features

Used in the fields of construction sites, warehousing, and logistics; Ports and docks, handling small containers, groceries, etc.

1. The operation is relatively simple, usually using an electronic control system, which can achieve forward, backward, lifting and other actions through a handle or button.

2. Small size, small turning radius, capable of flexible driving and operation in narrow spaces.

3. The motor has reliable performance and can operate stably for a long time, reducing equipment failures and maintenance frequency.

4. The motor runs smoothly with minimal vibration. The operator will not feel tired when operating the forklift for a long time, which improves work efficiency and safety.

5. The operating noise is very low, usually below 60 decibels.

6. Equipped with an intelligent maintenance system that can monitor the operation status of equipment in real time, warn of faults in advance, and reduce maintenance costs.

Maximum lifting weight3500kg
long2700mm without fork
long3920mm including fork
wide1200mm
tall2200mm
Operating weight 4700kg
Lift Height3 meters
Body materialThick integrated stamping body
Walking motor10KW brushless AC motor
voltage72V
controllerAnti slip slope safety controller
battery12 maintenance free dry batteries
Lighting and SignalLighting fixtures, left and right turn signals, brake lights, driving lights, instruments, electric horns, etc
Drive axleFull floating integrated heavy-duty low-speed drive axle
tireFront wheel 23 * 9-10 (high wear-resistant solid tire)
tireRear wheel 18 * 7-8 (high wear-resistant solid tire)
steering axleSpecial rear axle for heavy-duty forklifts
Braking methodHand brake, oil brake
Lifting cylinderStrengthen the sealing of dual oil cylinders
FORK LENGTH1220mm ultra thick forged fork
Hydraulic lifting motor10KW brushless power unit
Longmen frame materialForklift specific thickened 160cm G-shaped steel frame
Steering methodHydraulic Power Steering
Turning radius90 ° can turn in place
charging time6 hours
Working Time3-4 hours
Climbing angle15°
Door frame hanging boardThickened shelf guardrail
