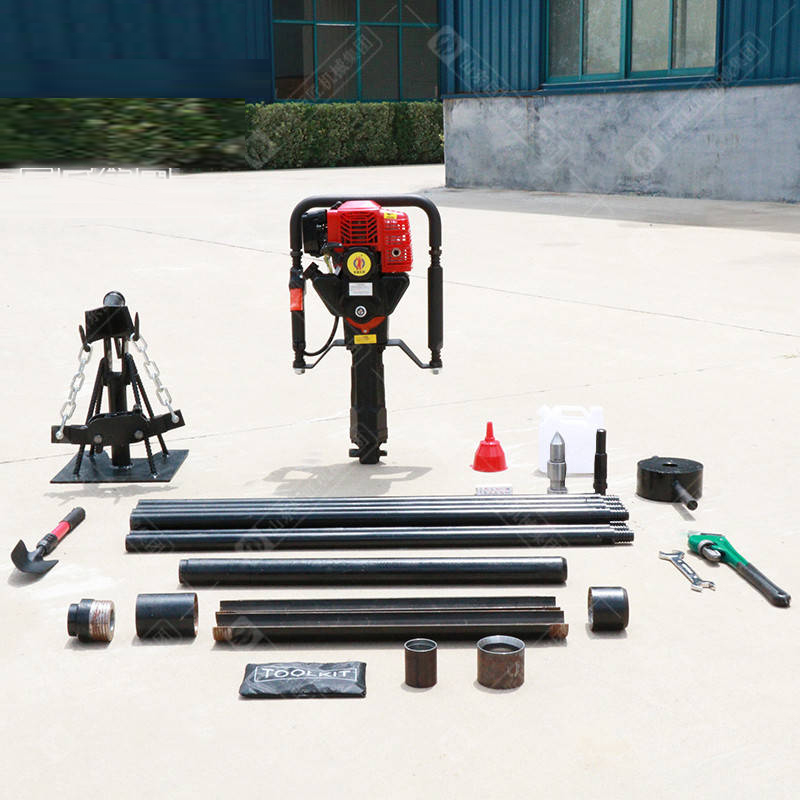

CY-20T Soil sampling drilling rig
1、【FEATURES】 The CY-20T gasoline engine portable soil sampling rig adopts enhanced power, strong impact force, and can penetrate deep, meeting the requirements of soil sampling engineering at depths of 10-15 meters.Application areas: Geotechnical engineering survey;Environmental soil investigation;
Agricultural soil investigation： Groundwater investigation;Coastal geological survey; Wetland environmental investigation;Tailings pond investigation; Archaeological investigation;Secondary halo sampling in physical and chemical exploration;Soil structure description
| efficiency | 3.3HP |
| Method of ignition | Recoil rope |
| oil consumption | 0.55L/H |
| Number of impacts | 1650 R/min |
| Impact energy | 35J~65J |
| Core depth | 10M~20M |
| machine weight | 25KG |
| name | model |
| main engine | CY-20T |
| Fang Kou Impact Takeover | Φ34 |
| drill pipe | Φ34*1000mm*10 |
| head | Φ50/34 |
| Clamp | Φ50 |
| Split tube | Φ50 |
| Inner blade tube boots | Φ50 |
| External blade tube boots | Φ50 |
| head | Φ73/34 |
| Clamp | Φ73 |
| Split tube | Φ73 |
| Inner blade tube boots | Φ73 |
| External blade tube boots | Φ73 |
| Lightweight probing hammer | 10KG |
| Shocking the head | Φ34 |
| Double sided takeover | Φ34 |
| Touch probe | Φ34 |
| Puller | Three force arms |
| Mixing oil pot | 25:01:00 |
| Oil funnel | |
| spark plug | |
| tool kit | |
| Pipe pliers | |
| Wrench | |
| Soil shovel |
