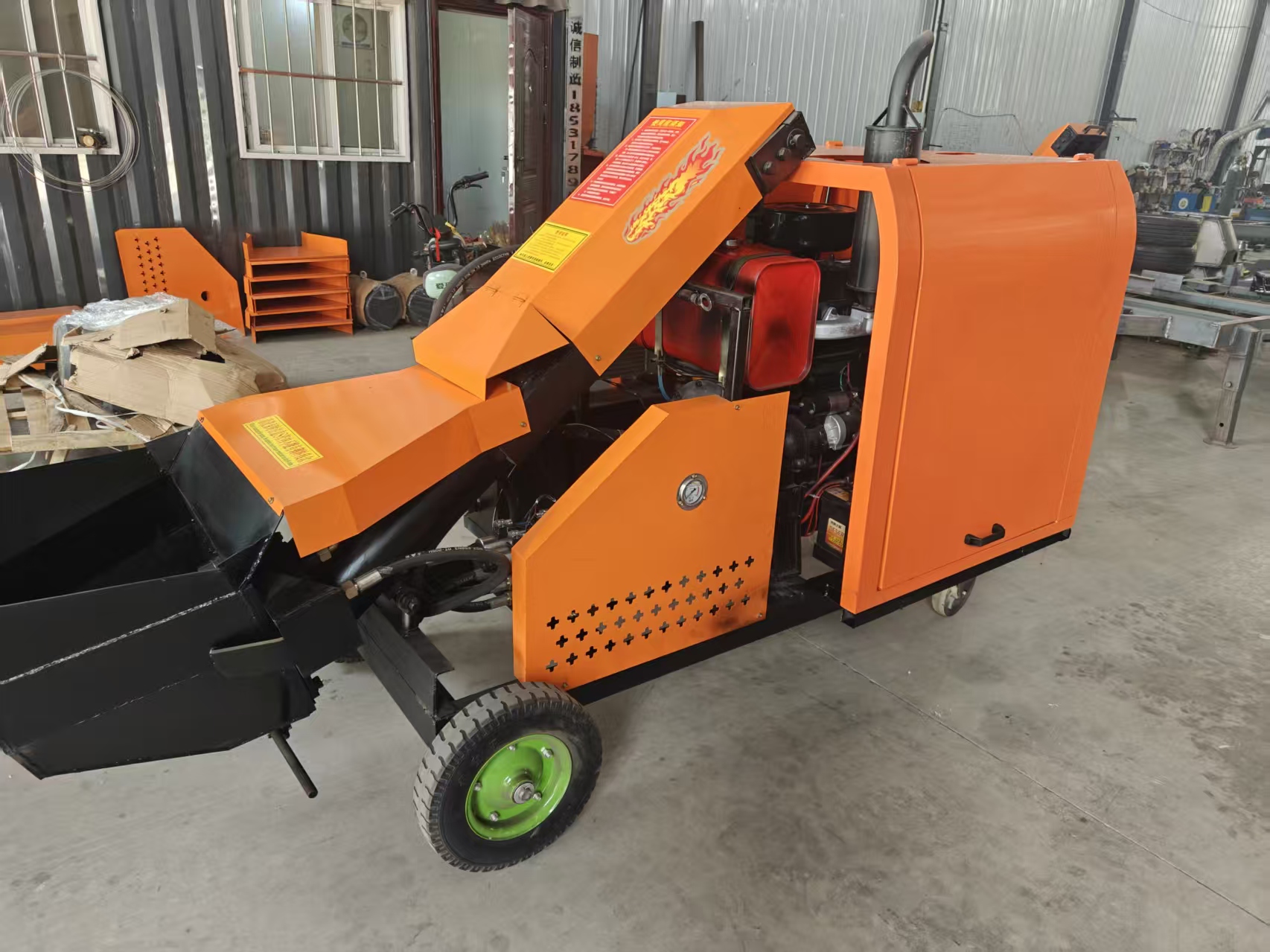

| model | CY-15S |
| power | Diesel version: 4102 diesel power Motor version: 15kw/22kw |
| main oil pump | sixty-five |
| conveying capacity | 6m³-7m³ |
| Vertical conveying height | 15-20 meters |
| Horizontal conveying distance | 60-80 meters |
| Transport particle diameter | 1-3CM |
| pipe diameter | 800mm-1000mm diameter |
| Cylinder diameter | 120mm |
| Discharge port diameter | 100mm |
| Total weight | 650 kilograms |
| Overall dimensions | Motor version: 1.9 * 0.9 * 1.1 Diesel version: 2.8 * 1.1 * 1.5 |
| Hopper sedimentation | 0.35m³ |
| Material conveying cylinder stroke | 550mm |
| Maximum oil pressure of the system | 15mpa |
| Distribution valve form | S-pipe valve |
| S pipe | Wear resistant chrome plating treatment |
| distribution box | CNC display screen |
