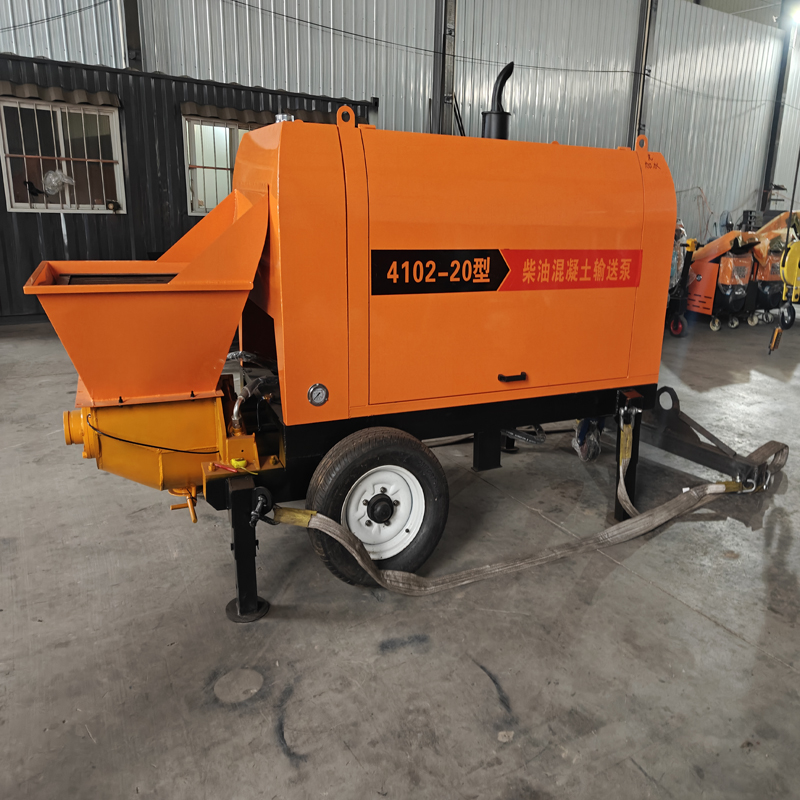

| model | CY-20S |
| power | Diesel version: 4102 diesel power Motor version: 22kw“ |
| main oil pump | eighty |
| conveying capacity | 8-10m³ |
| Vertical conveying height | 20-25 meters |
| Horizontal conveying distance | 80 meters to 100 meters |
| Large conveying particle diameter | 1-3cm |
| pipe diameter | 100mm-80mm |
| Diameter of feeding cylinder | 120mm |
| Discharge port diameter | 100mm |
| Total weight | 1.2T |
| Overall dimensions | Motor version: 3 * 1.3 * 1.5 Diesel version: 3.2 * 1.4 * 1.7“ |
| Hopper sedimentation | 0.5m³ |
| Material conveying cylinder stroke | 650mm |
| Maximum oil pressure of the system | 18mpa |
| Distribution valve form | S-pipe valve |
| S pipe | Wear resistant chrome plating treatment |
| distribution box | CNC display screen |
