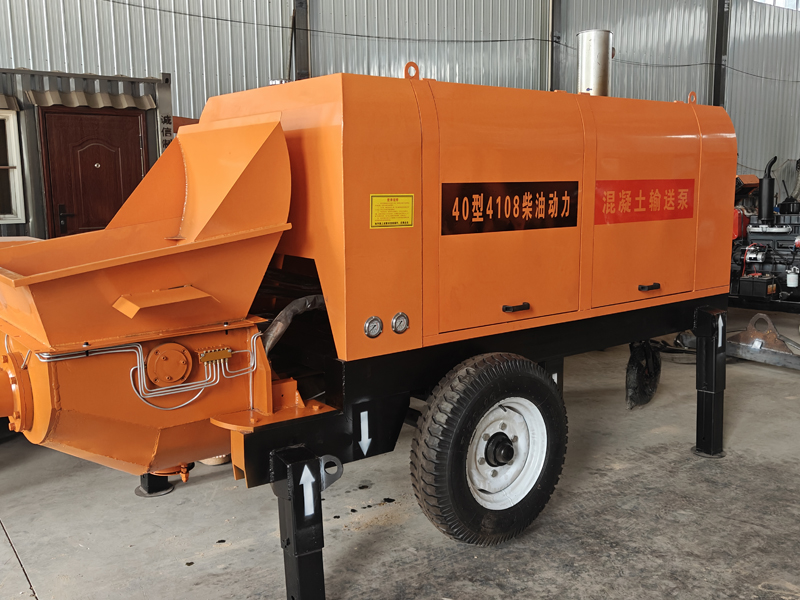

| model | CY-40S concrete conveying pump |
| power | Diesel version: 4108 diesel power Motor version: 45kw“ |
| main oil pump | Kawasaki 112 oil pump |
| conveying capacity | 25-30m³ |
| Vertical conveying height | 60-80 meters |
| Horizontal conveying distance | 150-200 meters |
| Large conveying particle diameter | 1-6cm |
| pipe diameter | 125mm-100mm-80mm |
| Diameter of feeding cylinder | 180mm |
| Discharge port diameter | 150mm |
| Total weight | 2.0T |
| Overall dimensions | Motor version: 4.3 * 1.8 * 1.9 Diesel version: 4.5 * 1.8 * 2.1 |
| Hopper sedimentation | 0.65m³ |
| Material conveying cylinder stroke | 1250mm |
| Maximum oil pressure of the system | 28mpa |
| Distribution valve form | S-pipe valve |
| S pipe | Wear resistant chrome plating treatment |
| distribution box | CNC display screen |
