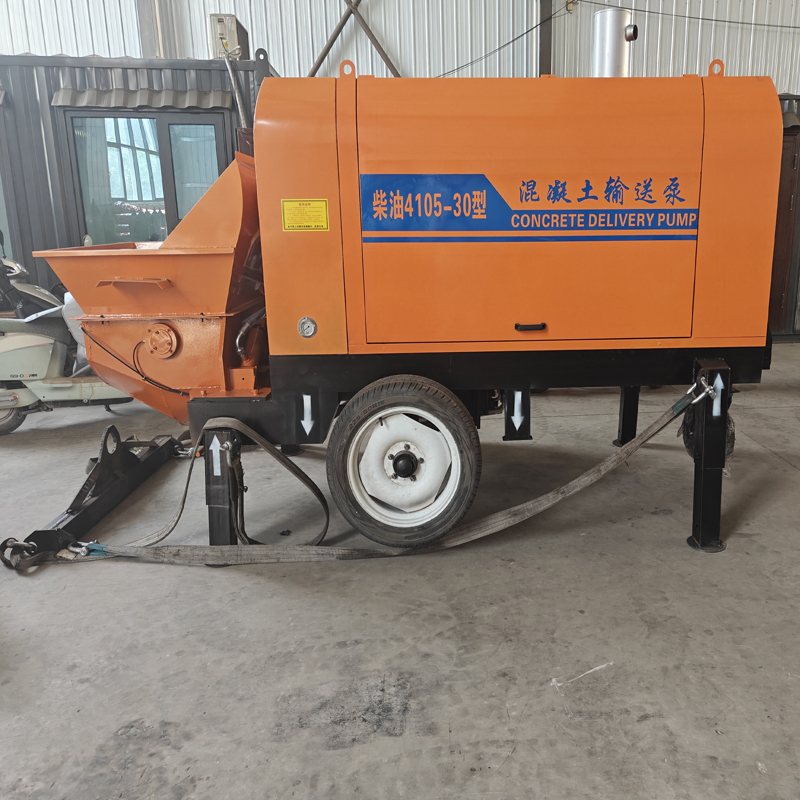

| model | CY-30S concrete delivery pump |
| power | Diesel version: 4105 diesel power Motor version: 37kw |
| main oil pump | one hundred |
| conveying capacity | 20-25m³ |
| Vertical conveying height | 40-60 meters |
| Horizontal conveying distance | 120-150 meters |
| Large conveying particle diameter | 1-5cm |
| pipe diameter | 125mm-100mm-80mm |
| Diameter of feeding cylinder | 160mm |
| Discharge port diameter | 125mm |
| Total weight | 1.6T |
| Overall dimensions | Motor version: 3.8 * 1.7 * 1.8 Diesel version: 4.0 * 1.7 * 2.0“ |
| Hopper sedimentation | 0.6m³ |
| Material conveying cylinder stroke | 1000mm |
| Maximum oil pressure of the system | 25mpa |
| Distribution valve form | S-pipe valve |
| S pipe | Wear resistant chrome plating treatment |
| distribution box | CNC display screen |
