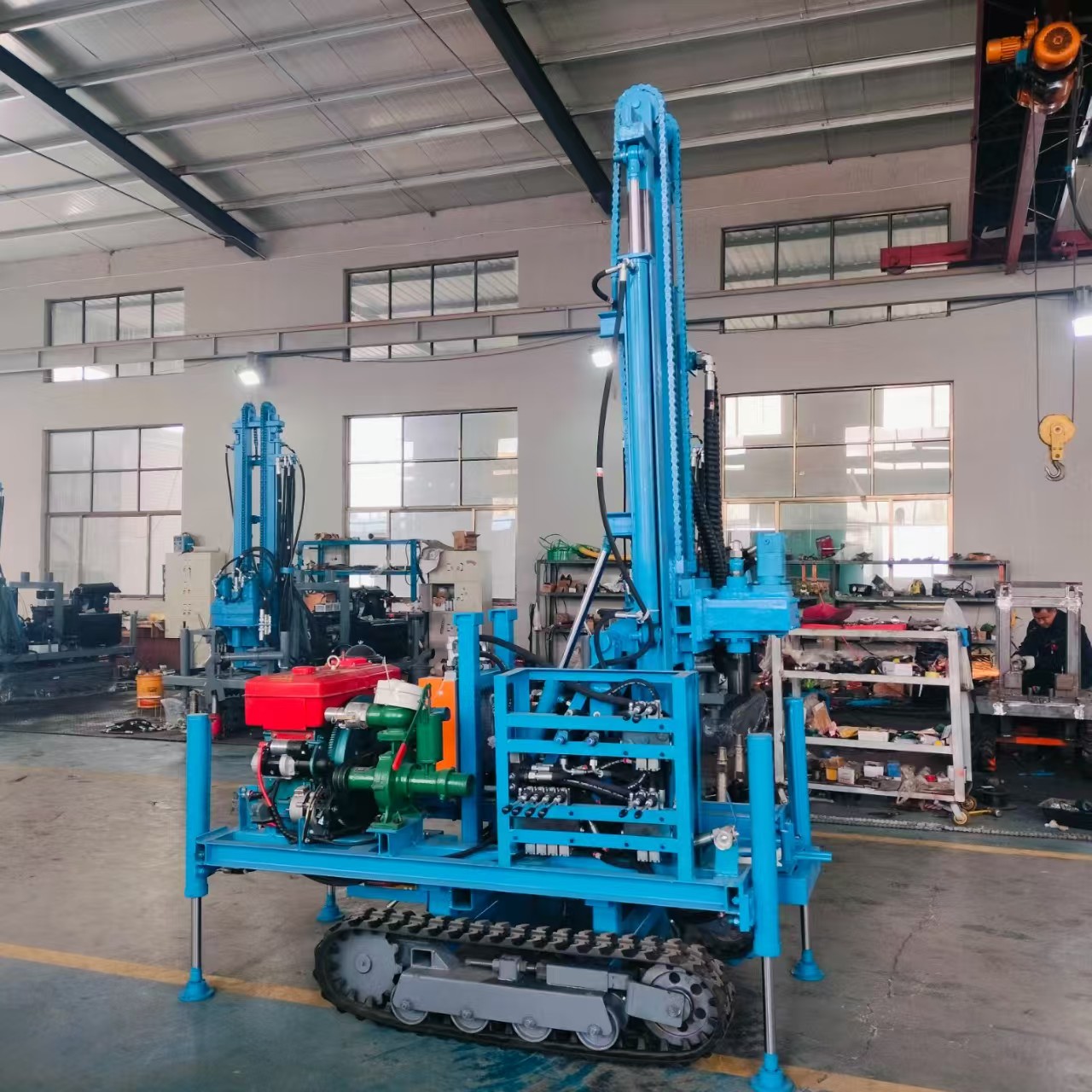

CY-180Q Type Water Gas Dual Use Fully Hydraulic Water Well Drilling Machine
characteristic
This is a dual-purpose water and steam well drilling rig that can be used in conjunction with a mud pump for hydraulic rotary drilling, and can also be equipped with an air compressor for rock drilling. It is an efficient drilling machine.
| model | CY-180Q |
| Drilling diameter | 100mm-400mm |
| drill depth | 180m |
| Engine power | 35p |
| Rotating torque | 5500n |
| rotation speed | 90-160RPM/h |
| lift force | 10t |
| Adapt to drill rods | 60mm，76mm |
| Drill pipe length | 2m |
| Adapt to air compressors | 18-25 bar |
| drill weight | 2200mm*1400mm*2200mm |
