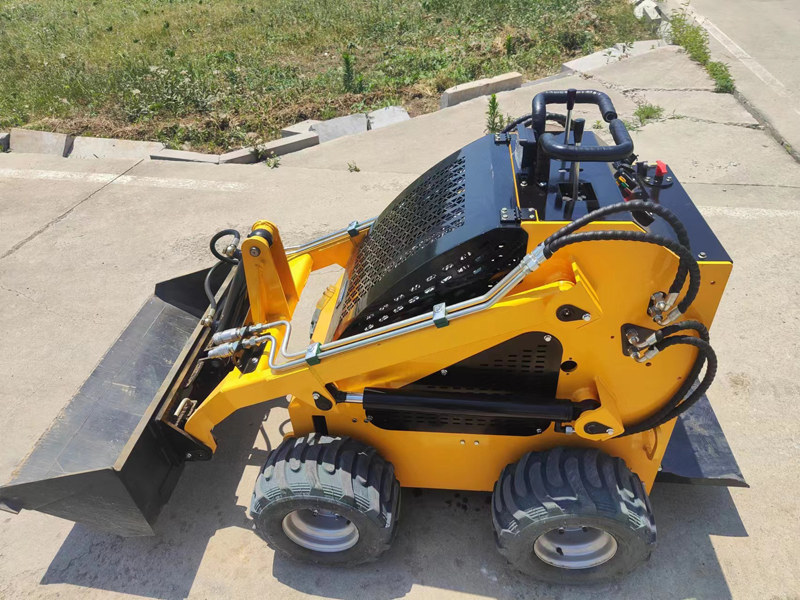

CY-460  Small skid steer loader

CY-460 Small skid steer loader


It  is  widely  used  in  construction  sites  to  transport  materials  with  buckets;in  road  maintenance,it  is  replaced with  a  sweeper to  clean  the  road;in  winter,a  snow  blower  is  installed  to  remove  snow.

● The  overallsize  of the  machine  is  small,and  it  can  easily  pass  through  narrow  passages,doorways  and  low spaces,and  can  freely  shuttle  operations  in  narrow  sites.

● Various  functions  can   be  achieved   by  replacing  different  attachments,such  as   buckets,digging  arms, sweepers,snow  blowers,wood  grabbers,etc.Adapt  to  a  variety  of  work   scenarios.

● The  driver  can  easily  control  the  machine's  movements  through  the  joystick,improving  work  efficiency and  shortening  operation  time.

● Generally,all-wheel  drive  is  used  and  there  is  no  inter-wheel  differential,which  is  conducive  to  operations on  uneven  sites  and  has  good  off-road  capabilities  and  passability.

● It  can  adapt  to  various  terrains  and  working  environments,whether  it  is  flat  roads,rugged  mountains, muddy  fields,soft  sand,etc.,it   can  drive  and  work  stably.

● It  is  used  as  equipment  for  logistics  support,site  cleaning  and  project  closing  of  large  construction  machinery.

Engine BrandKOOP/RATO/BRIGGS &STRATTON
rated power14kw/15kw/23HP
No. of cylinders2
Air Intake method  NATURAL ASPIRATION
emission standardEURO 5-EPA
RATED LOAD300KG
maximum load400KG
Maximum digging force4.5KN
Bucket capacity0.12m³
Speed0-6km/h
Work three items9S
Work system pressure17-21bar
Fuel tank capacity10L
Operational Quality1000Kg
Tire model18*8.5-8
Maximum operating height2450mm
To the height of the bucket pin1870mm
Vehicle height1360mm
Maximum horizontal height of bucket1810mm
Total length without bucket1680mm
Total length with standard bucket2206mm
Maximum height unloading angle34°
Dumping height1510mm
Unloading distance450mm
The bucket flips at the highest angle114°
wheelbase850mm
Ground clearance150mm
Tail length280mm
Car width1030mm
Bucket width1000mm
