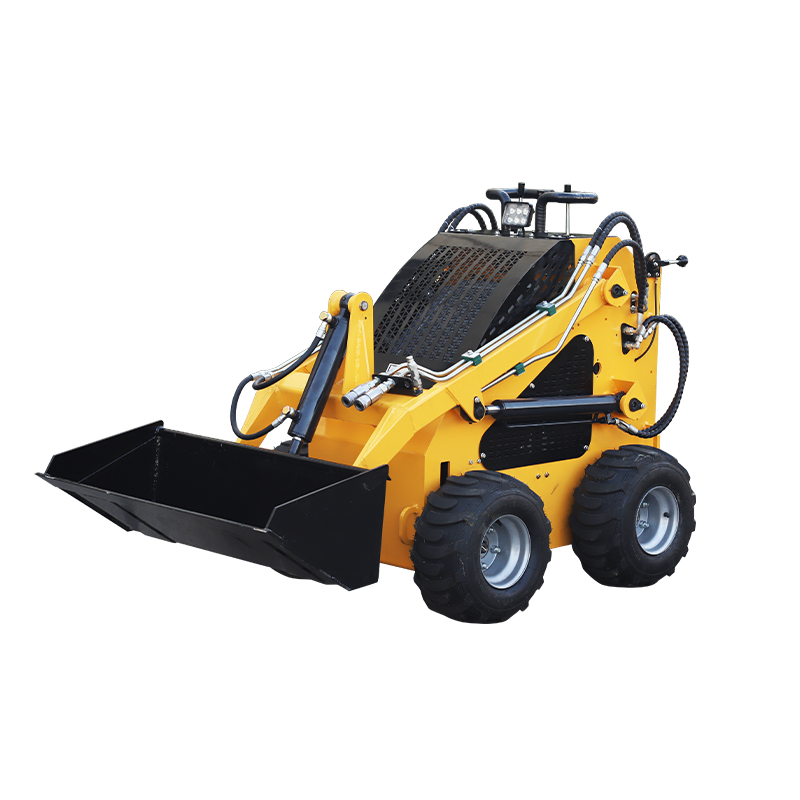

CY-460L Skid steer loader

CY-460L Skid steer loader


It  is  widely  used  in  construction  sites  to  transport  materials  with  buckets;in  road  maintenance,it  is  replaced with  a  sweeper to  clean  the  road;in  winter,a  snow  blower  is  installed  to  remove  snow.

● The  overallsize  of the  machine  is  small,and  it  can  easily  pass  through  narrow  passages,doorways  and  low spaces,and  can  freely  shuttle  operations  in  narrow  sites.

● Various  functions  can   be  achieved   by  replacing  different  attachments,such  as   buckets,digging  arms, sweepers,snow  blowers,wood  grabbers,etc.Adapt  to  a  variety  of  work   scenarios.

● The  driver  can  easily  control  the  machine's  movements  through  the  joystick,improving  work  efficiency and  shortening  operation  time.

● Generally,all-wheel  drive  is  used  and  there  is  no  inter-wheel  differential,which  is  conducive  to  operations on  uneven  sites  and  has  good  off-road  capabilities  and  passability.

● It  can  adapt  to  various  terrains  and  working  environments,whether  it  is  flat  roads,rugged  mountains, muddy  fields,soft  sand,etc.,it   can  drive  and  work  stably.

● It  is  used  as  equipment  for  logistics  support,site  cleaning  and  project  closing  of  large  construction  machinery.

Engine BrandKOOP/RATO/BRIGGS &STRATTON
rated power14kw/15KW/23HP
No. of cylinders2
Air Intake methodNATURAL ASPIRATION
emission standardEURO 5-EPA
RATED LOAD300KG
maximum load400KG
Maximum digging force4.5KN
Bucket capacity0.12m³
Speed0-6km/h
Work three items9S
Work system pressure17-21bar
Fuel tank capacity10L
Operational Quality1000Kg
track width180mm
Maximum operating height2450mm
To the height of the bucket pin1870mm
Vehicle height1360mm
Maximum horizontal height of bucket1810mm
Total length without bucket1680mm
Total length with standard bucket2206mm
Maximum height unloading angle34
Dumping height1510mm
Unloading distance450mm
The bucket flips at the highest angle114
wheelbase850mm
Ground clearance150mm
Tail length280mm
Car width1030mm
Bucket width1000mm
