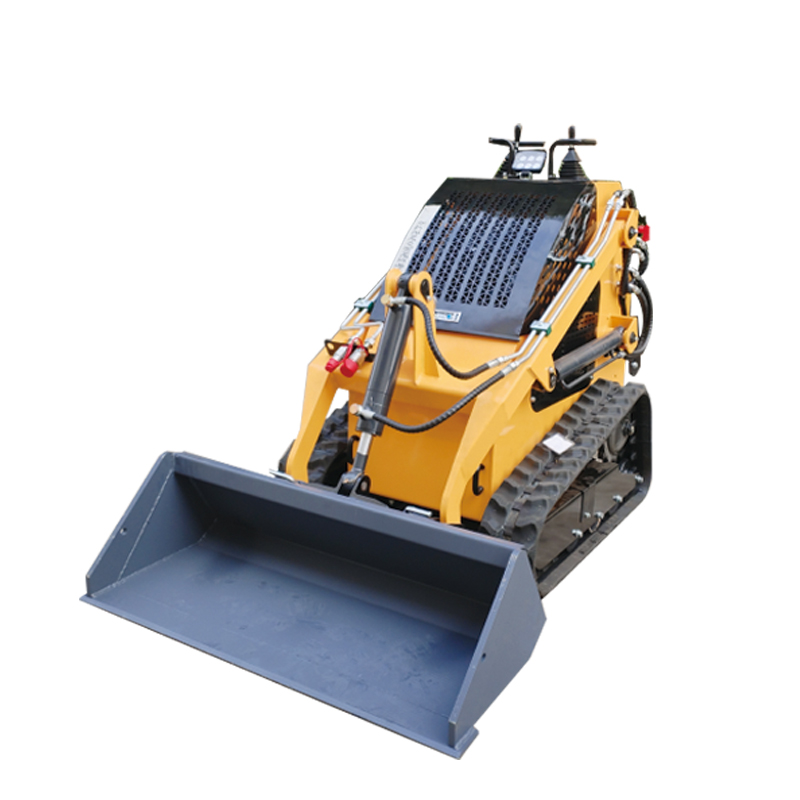

CY-360L Skid steer loader

CY-360L Skid steer loader


●【MODEL】:CY-360L

It  is  widely  used  in  construction  sites  to  transport  materials  with  buckets;in  road  maintenance,it  is  replaced with  a  sweeper to  clean  the  road;in  winter,a  snow  blower  is  installed  to  remove  snow.

● The  overallsize  of the  machine  is  small,and  it  can  easily  pass  through  narrow  passages,doorways  and  low spaces,and  can  freely  shuttle  operations  in  narrow  sites.

● Various  functions  can   be  achieved   by  replacing  different  attachments,such  as   buckets,digging  arms, sweepers,snow  blowers,wood  grabbers,etc.Adapt  to  a  variety  of  work   scenarios.

● The  driver  can  easily  control  the  machine's  movements  through  the  joystick,improving  work  efficiency and  shortening  operation  time.

● Generally,all-wheel  drive  is  used  and  there  is  no  inter-wheel  differential,which  is  conducive  to  operations on  uneven  sites  and  has  good  off-road  capabilities  and  passability.

● It  can  adapt  to  various  terrains  and  working  environments,whether  it  is  flat  roads,rugged  mountains, muddy  fields,soft  sand,etc.,it   can  drive  and  work  stably.

● It  is  used  as  equipment  for  logistics  support,site  cleaning  and  project  closing  of  large  construction  machinery.

Engine modelKOOP/RATO/BRIGGS &STRATTON
Rated power                                   10/15/13.5HP
No.of cylinders1
Air Intake method                            NATURAL ASPIRATION
Emission standardEURO 5-EPA
Rated load                                    200KG
Maximum load300KG
Maximum digging force                        3.5KN
Bucket capacity0.12M³
Driving speed                                 0-6KM/H
Work system pressure                          17-21bar
Work three items9S
Fuel tank capacity5L
Working weight                               900KG
Track width180MM
Maximum operating height                     2450MM
To the height of the bucket pin1870MM
Vehicle height                               1360MM
Maximum horizontal height of bucket1810MM
Total length without bucket                  1550MM
Total length with bucket2100MM
Maximum height unloading angle               34°
Unloading height1510MM
Unloading distance                           450MM
The bucket flips at the highest angle114°
Wheelbase                                    850MM
Ground clearance150MM
Tail length                                   280MM
Car width930MM
Bucket width                                 1000MM
