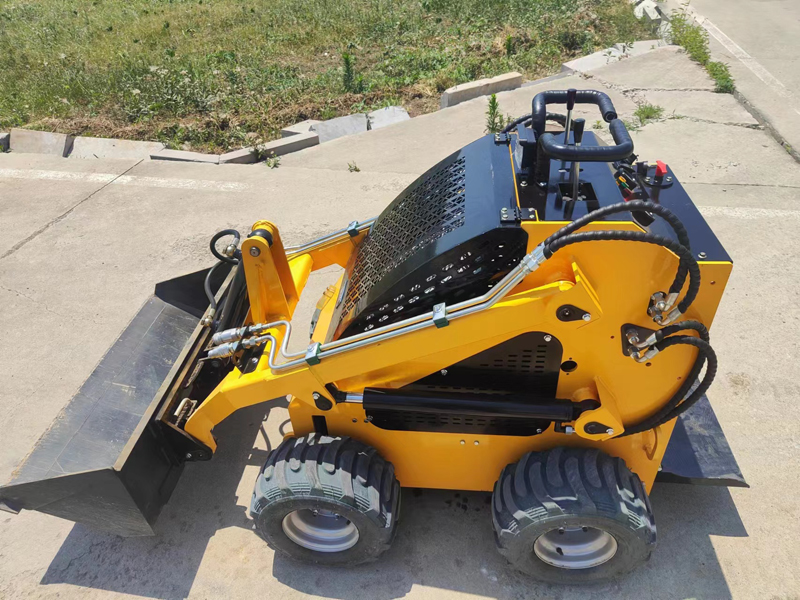

CY-360 Skid steer loader

CY-360 Skid steer loader


It is widely used in construction sites to transport materials with buckets;in road maintenance,it is replaced with a sweeper to clean the road;in winter,a snow blower is installed to remove snow.

● The overallsize of the machine is small,and it can easily pass through narrow passages,doorways and low spaces,and can freely shuttle operations in narrow sites.

● Various functions can be achieved by replacing different attachments,such as buckets,digging arms, sweepers,snow blowers,wood grabbers,etc.Adapt to a variety of work scenarios.

● The driver can easily control the  machine's movements through the joystick,improving work efficiency and shortening operation time.

● Generally,all-wheel  drive is used and there is no inter-wheel differential,which is conducive to operations on uneven sites and has good off-road capabilities and passability.

● It can adapt to various terrains and working environments,whether it is flat roads,rugged mountains, muddy fields,soft sand,etc.,it can drive and work stably.

● It is used as equipment for logistics support,site cleaning and project closing of large construction machinery.

ModelCY-360
Engine BrandKOOP/RATO/Briggs &Stratton
Rated power   10/15/13.5
No.of cylinders1
Air Intake method  Natural Aspiration
Emission standardEuro 5-EPA
Load200kg
Maximum load300KG
  Maximum digging force           3.5KN
Bucket capacity0.12m³
Speed                                    0-6KM/H
Work three items and9S
Work system pressure                     17-21bar
Fuel tank capacity5L
Operational Quality                      900KG
Tire model18*8.5-8
Maximum operating height                 2450mm
To the height of the bucket pin1870mm
Vehicle height                           1300mm
Maximum horizontal height of bucket1810mm
Total length without bucket              1550mm
Total length with bucket2100mm
Unloading height                         1510mm
Unloading distance450mm
Bucket flipping angle                    27°-114°
Wheelbase850mm
Ground clearance                         150mm
Tail length280mm
Car width                                1050mm
Bucket width1000mm
