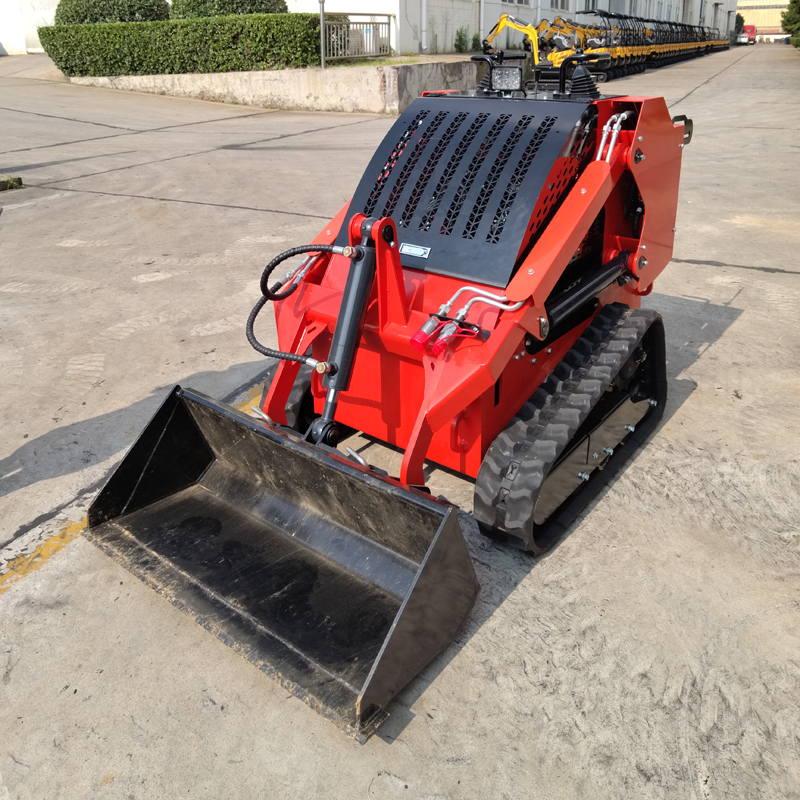

CY-480L Skid steer loader
It is widely used in construction sites to transport materials with buckets;in road maintenance,it is replaced with a sweeper to clean the road;in winter,a snow blower is installed to remove snow.
● The overallsize of the machine is small,and it can easily pass through narrow passages,doorways and low spaces,and can freely shuttle operations in narrow sites.
● Various functions can be achieved by replacing different attachments,such as buckets,digging arms, sweepers,snow blowers,wood grabbers,etc.Adapt to a variety of work scenarios.
● The driver can easily control the machine's movements through the joystick,improving work efficiency and shortening operation time.
● Generally,all-wheel drive is used and there is no inter-wheel differential,which is conducive to operations on uneven sites and has good off-road capabilities and passability.
● It can adapt to various terrains and working environments,whether it is flat roads,rugged mountains, muddy fields,soft sand,etc.,it can drive and work stably.
● It is used as equipment for logistics support,site cleaning and project closing of large construction machinery.
| Engine Brand | Yanmar380 |
| rated power | 17.8KW |
| No. of cylinders | 3 |
| emission standard | EPA |
| RATED LOAD | 350KG |
| maximum load | 480KG |
| Maximum digging force | 4.5KN |
| Bucket capacity | 0.12m³ |
| Speed | 0-6km/h |
| Work three items | 9S |
| Work system pressure | 17-21bar |
| Fuel tank capacity | 13L |
| Operational Quality | 1200Kg |
| track width | 180mm |
| Maximum operating height | 2450mm |
| To the height of the bucket pin | 1870mm |
| Vehicle height | 1360mm |
| Maximum horizontal height of bucket | 1810mm |
| Total length without bucket | 1680mm |
| Total length with standard bucket | 2206mm |
| Maximum height unloading angle | 34 |
| Dumping height | 1510mm |
| Unloading distance | 450mm |
| The bucket flips at the highest angle | 114 |
| wheelbase | 850mm |
| Ground clearance | 150mm |
| Car width | 1030mm |
| Bucket width | 1000mm |
